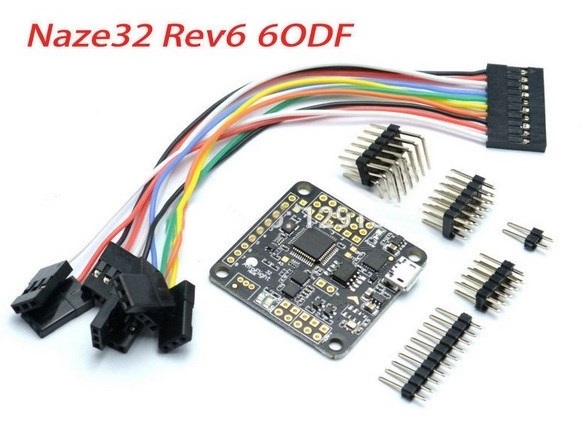

Naze32 Rev6 6DOF ohne Compass-/ und Barometer-Sensor

Naze32 Rev6 6DOF ohne Compass-/ und Barometer-Sensor

Highlights:

Flexible motor outputs, support various airframe types:
Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal. (Default is Quad-X)
Up to 8 ch RC input – supports standard receivers (PWM), PPM Sum receiver (FrSky, etc), or Spektrum satellite receivers.
Built in FrSky telemetry inverter (shared w/main port)
Battery voltage monitoring
Modern 32-bit processor running at 3.3V/72MHz (STM32F103CB).
Onboard MicroUSB for setup and configuration
LEDs so bright, they could blind you
MultiWii-based configuration software for easy setup
rev6 hardware

Technische Daten:

36×36 mm (30.5mm Mounting)
5.3 grams (no headers, 7.3 grams with)
2000 degrees/second 3-axis MEMS gyro
Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line

Lieferumfang:

1 pcs Naze32 flight controller
1 set pins
1x RC breakout cable
1x plastic case
6 DOF ( ACRO ) is without compass and baro
