Leopard PHS2205 - 2700KV - FPV-Racing Multicopter Motor - CW/Rechts

Leopard PHS2205 – 2700KV – FPV-Racing Multicopter Motor – CW/Rechts

die Leopard Multicopter-Series – hochleistungs Brushless-Motoren für Multicopter

Technische Daten:

Model: PHS2205-2700KV
Version: rechtsdrehend / CW
KV: 2700 KV
max Power: 518 Watt
Wellen Ø: 4 mm
Wellen-Länge: 5mm
Gewicht: 29 gr
Max. Ampere: 35 A
Zellen: 2-4S / 7.4 – 14.8 Volt
Widerstand: 42 mOhm
Leerlaufstrom 1.7A
Konfiguration: 12N14P
Masse Motor: Ø 27.5 x 29.25 mm

Hier der Testbericht des 2300KV Version von www.miniquadtestbench.com :
(https://docs.google.com/spreadsheets/d/1_NOgzgcdyYuMB7FB-Fg97dKIMX1WKS9U3HxwR7D4DY4/edit?usp=sharing)

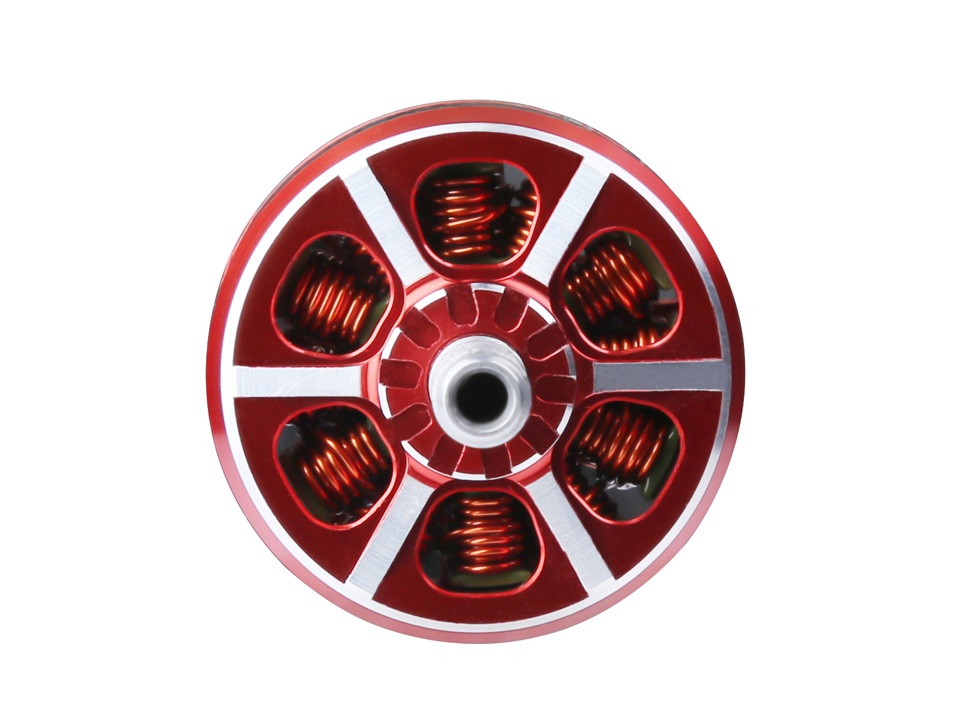

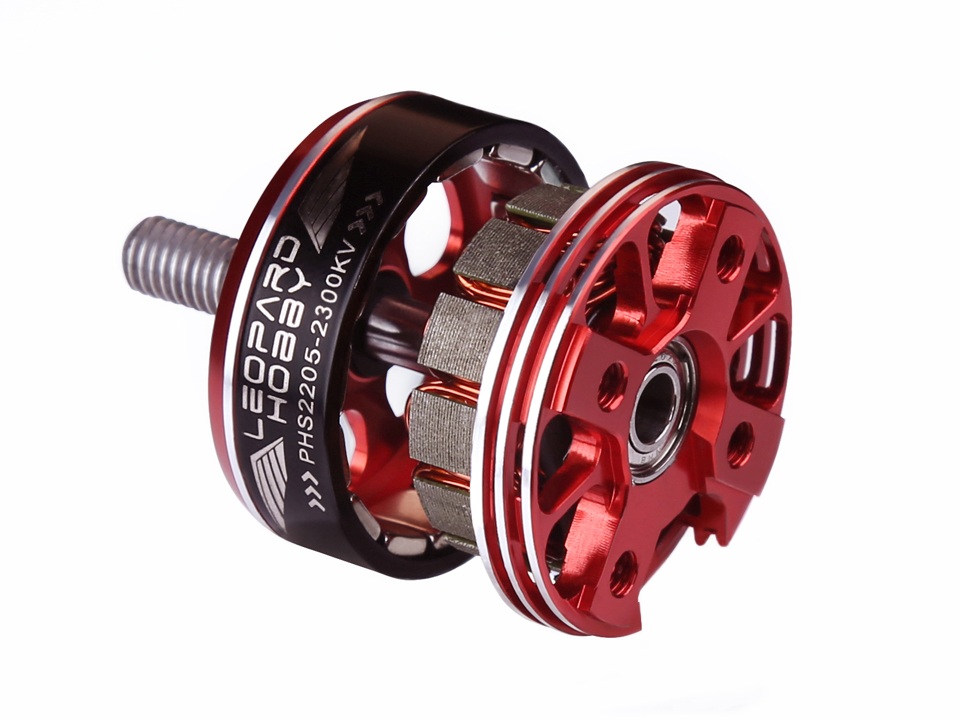

I had never heard of Leopard Hobby when they contacted me about testing this motor, so I was curious to see it when it arrived. I have been getting a lot of motors from new Chinese manufacturers lately that are not part of the traditionally known motor makers in the FPV world, and I have to say this is one of the best of these new motors that I’ve seen. Build quality is really stellar, and the design and finish on the motor are beautiful. Tolerances are quite tight, and the motor spins very smoothly. The shaft is the modern design single piece machined steel shaft with a 4mm internal diameter, and has NMB L-940ZZ bearings as do most of the 4mm shaft motors to hit the bench recently. The motor uses a smaller e-clip on the shaft similar to what Cobra uses that leaves less exposed clip and more area to grip the shaft, making it much less likely to pop out. The windings are thick single wire winds, and extremely neat and uniform. The three phase wires terminate inside the base of the bell as well, which is a nice touch. Overall I’m very impressed with the quality of this motor. The only downside I see is the weight, coming in at 29.2g, but that puts it in a similar class to a number of other motors in the same stator size.

Test Results
Given the high quality of the physical build of this motor, I was interested to see if the performance would live up to the looks. I was very pleasantly surprised here. This motor did very respectably. It essentially matched the BrotherHobby Tornado T1 2300kv, pulling ahead by a decent margin on the heavier props, and falling in just behind the Emax RS-S 2300kv by about 40g across the board. KV tested a bit higher than claimed at about 2400kv, but that is pretty close to tolerances. Overall this motor really nails it in its stator class.
