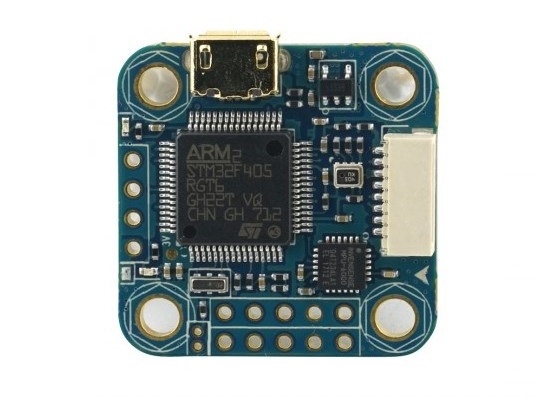

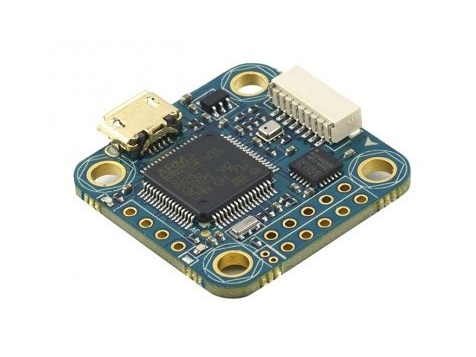

Flight Controller Airbot – Omnibus F4 Nano V3
2-6s direct input (adaptor to connect to Wave 4in1 ESC providing power and ESC signal connection (note Wave is 2-4s))
MPU6000 gyro connected by SPI for low noise, clean, high frequency gyro samples
BMP280 Barrometer to enable altitude hold
Betaflight OSD
Onboard voltage sensor
On board 5v regulator, components rated to 2A – recomended 1A max to prevent heat build up)
built in L-C filter to provide clean power to FPV kit
STM32 F405 MCU running betaflight 3.2
pin headers for SBUS/PPM input
output for 4 motors on JST-SH 1.0 8pin plug connects to Airbot Wave 4in1 ESC (The Option 8pin 4in1 Cable)
25x25mm (20x20mm M3 mount holes)
Auslieferung mit Firmware Betaflight 3.1.7
Passendes Anschlusskabel Zum Artikel
